CW Serious
COSO
Product Description

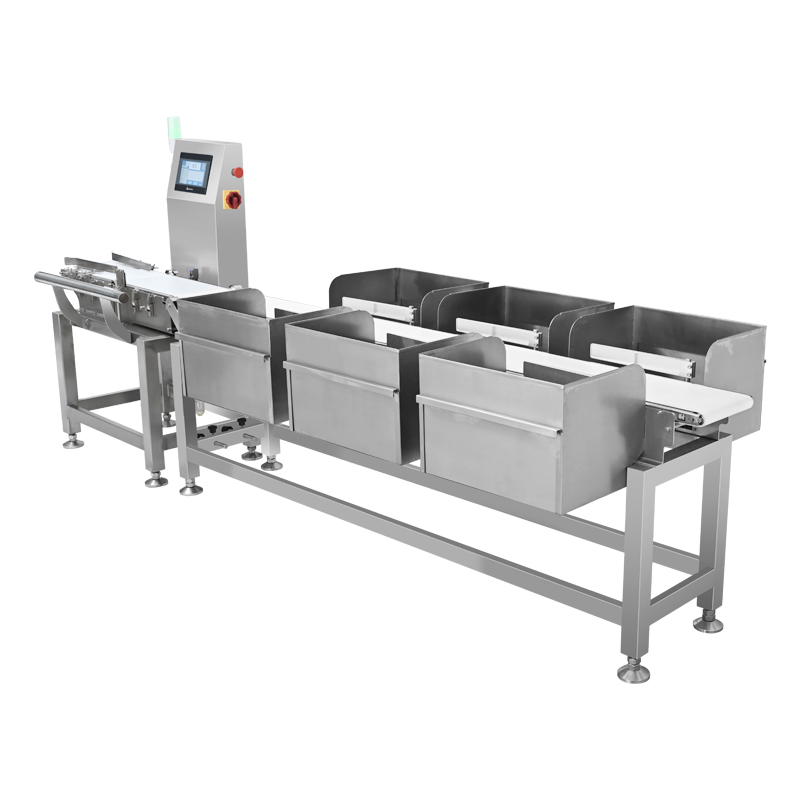

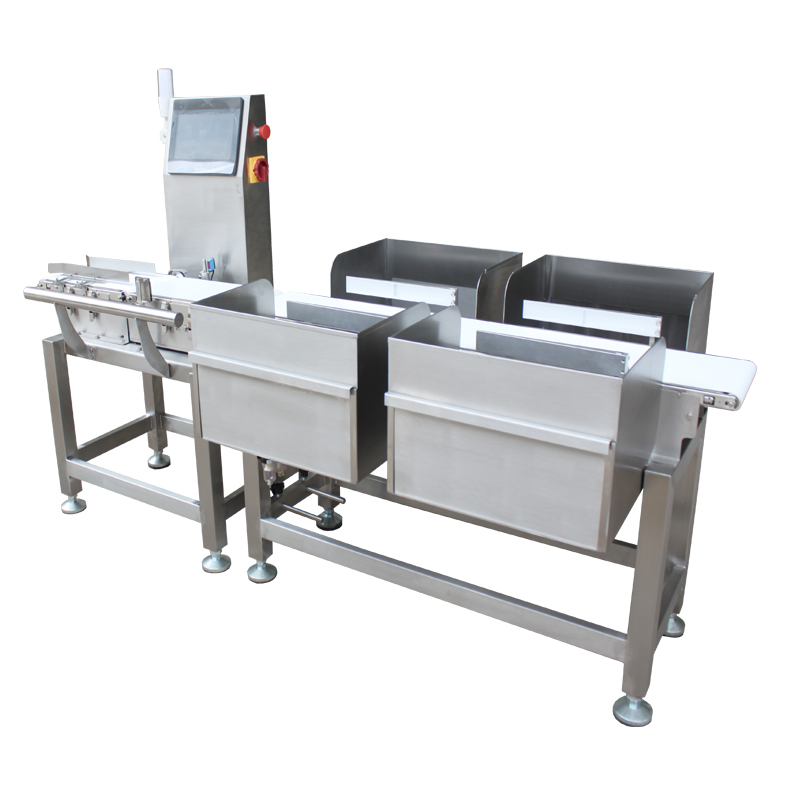

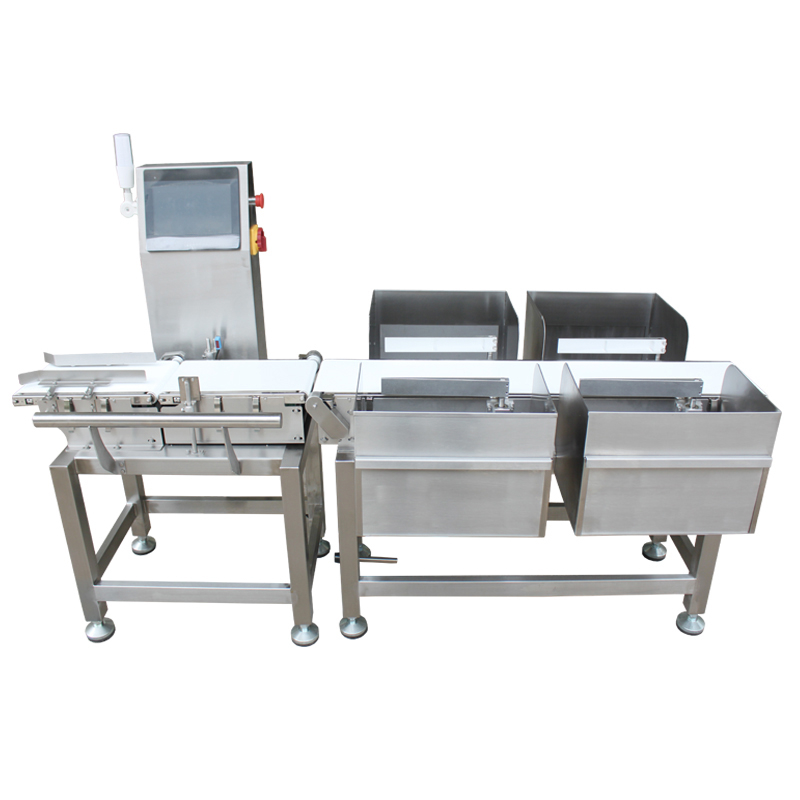

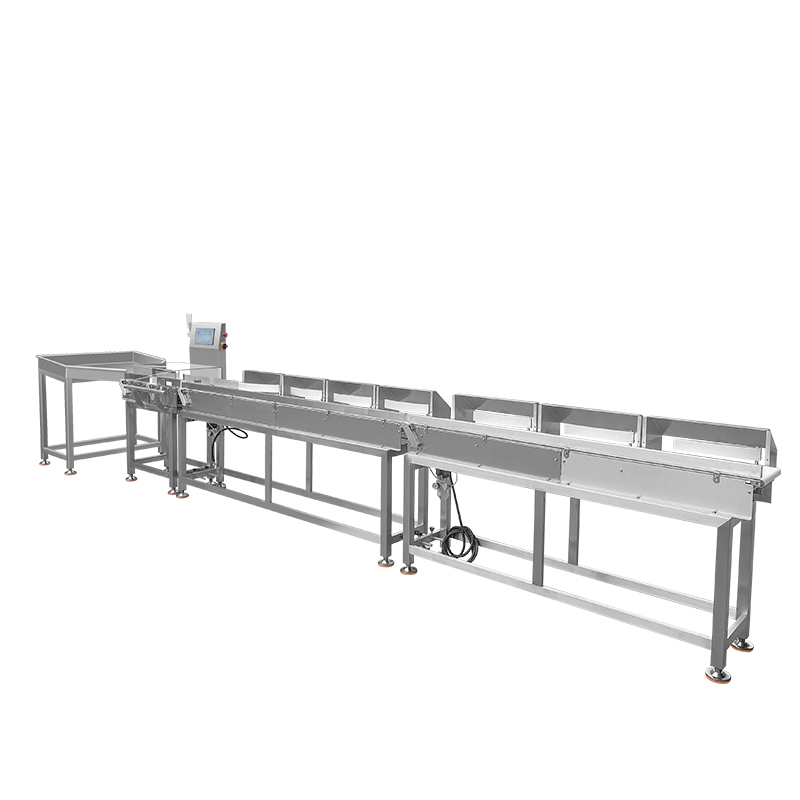

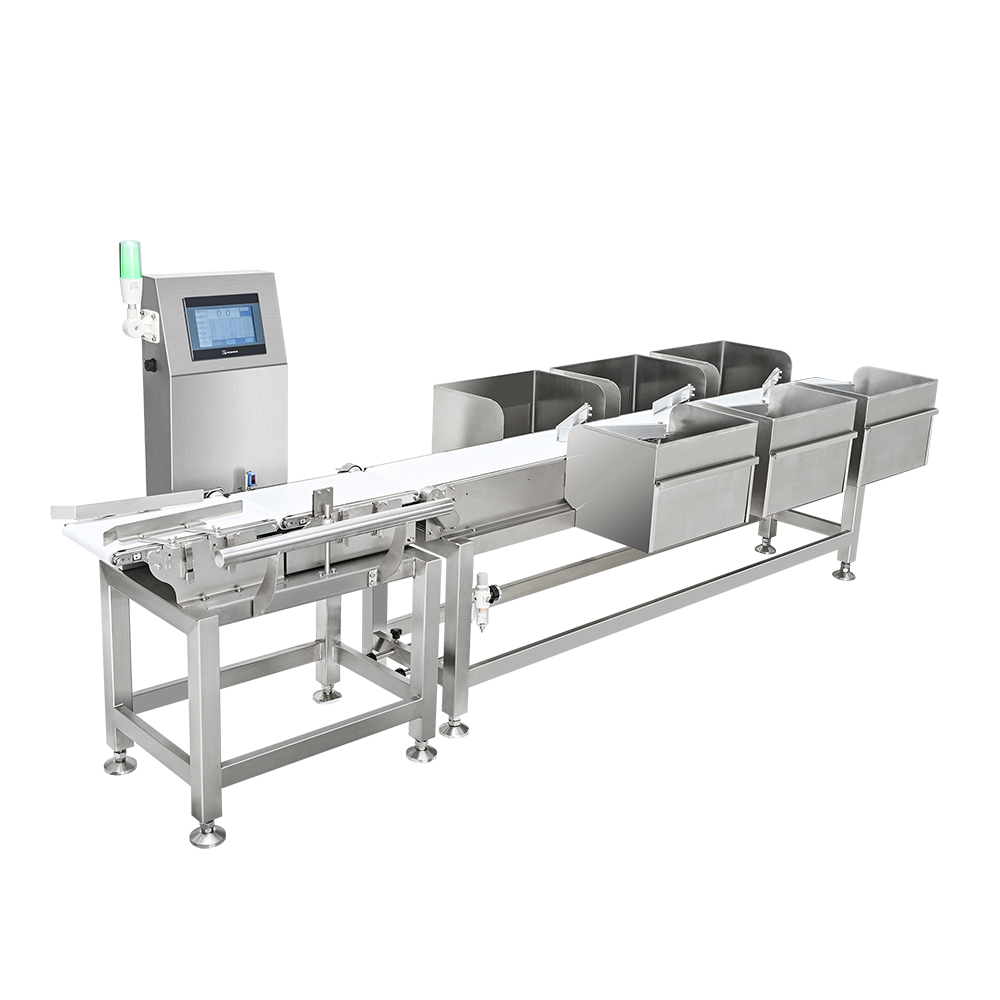

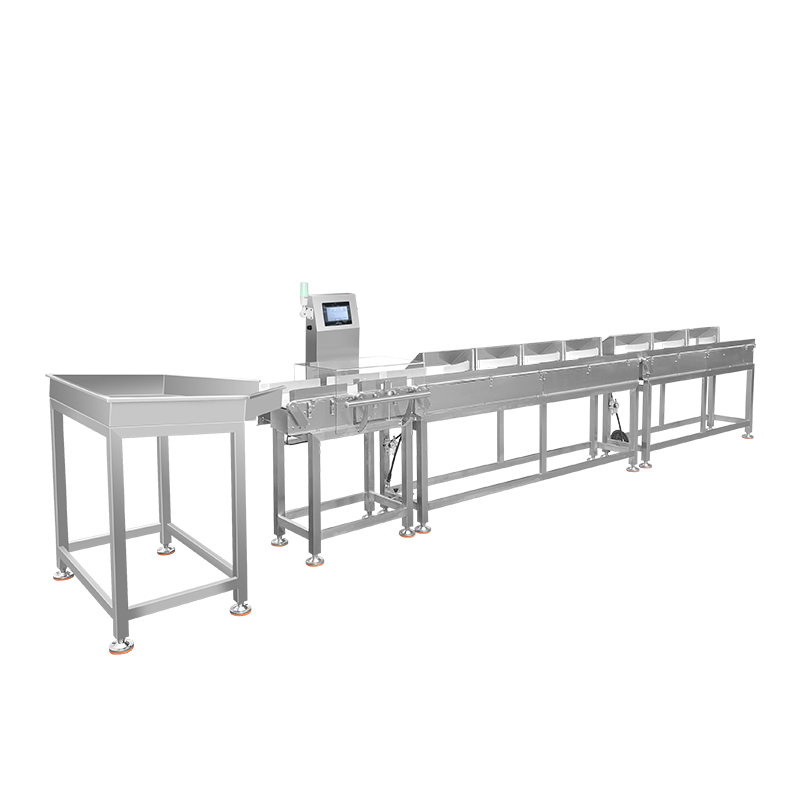

CW series multilevel weight sorting machine can be highly effective applied to food industry like seafood, aquatic product, fruit and vegetable, meat and poultry etc. Multilevel weight sorting machine can separate single product to specific level or weight grade, or weigh deep processing products as who cartons or boxes to check whether the cartons or boxes lack products. Using checkweigher can replace human labor, then save labor cost and also enhance efficiency.
Application (included but not limited to)

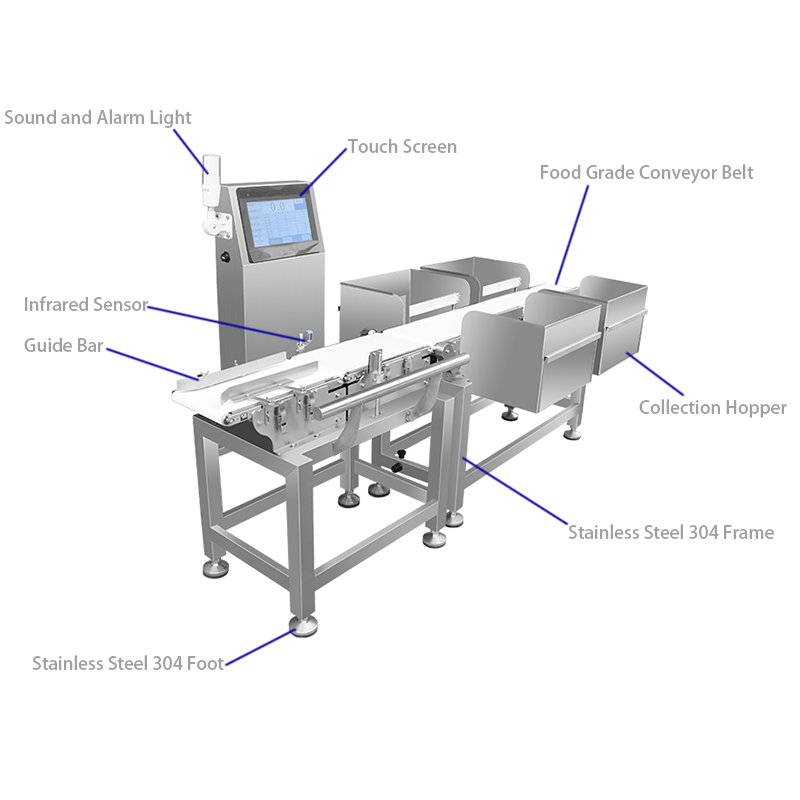

Product Details
Main Function
1. Report function: built-in report statistics; the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year statistical data (need to be equipped), at any time hold grip production status;
2. Interface: reserved standard interface, convenient for data management, can connect communication network with PC and other intelligent devices;
3. Achieve centralized control: can achieve centralized control of a computer / man-machine interface operates many check weighers;
4. Parameter recovery function: possessing the factory parameter setting recovery function.
Product Feature
1. Safe and Waterproof: The machine adopts special design of waterproof, and has strong resistance corrosion from seawater.
2. Highly effective and economical: Automatic checkweigher can replace human labor, and reduce labor cost.
3. Versatility: Standardized machine structure and standardized man-machine interface can complete the weighing of various materials.
4. Easy to change: Store a variety of formulations, convenient for the replacement of products specifications.
5. Simple operation: The use of Weilen color man-machine interface, the whole intelligent, user- friendly design.
6. Engineering plastic mesh chain, greatly improves the life span of transmission, and no need to maintain the whole machine.
7. Adjustable speed: Adopt variable frequency control motor speed can be adjusted according to needs.
8. High-speed, high-precision: Adopt the high-precision digital sensors.
9. Customized: Levels can be chosen according to customer requirements.
10. Zero tracking: It can be manually or automatically cleared, and dynamic zero tracking.
Product Specification
Model | CW-150F8-2 | CW-200F8-2 | CW-PD210F8 | CW-PD250F8 | CW-LB230F8 CW-LB230F8D | CW-LB350F8 | CW-YP9000F4 | CW-YP900F8 | |
Single Weighing Scope | ≤200g | ≤500g | ≤1000g | ≤3000g | ≤3000g | ≤5000g | ≤5000g | ≤5000g | |
Accuracy | ±0.2g～±1g | ±1g～±3g | ±1g～±3g | ±1g～±5g | ±1g～±5g | ±2g～±5g | ±0.5g～±3g | ±0.3g～±3g | |
Minimum Scale | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | |
Conveying Speed | 40～70m/min | 40～70m/min | 60～90m/min | 60～90m/min | 60～90m/min | 60～90m/min | _ | ||
Max Speed | 280pcs/min | 200pcs/min | 120pcs/min | 120pcs/min | 120pcs/min | 120pcs/min | 240pcs/min | 240pcs/min | |
Products to be Weighed | Length | ≤180mm | ≤250mm | ≤300mm | ≤400mm | ≤400mm | ≤450mm | ≤80mm | ≤200mm |
Width | ≤120mm | ≤150mm | ≤180mm | ≤180mm | ≤180mm | ≤340mm | ≤120mm | ≤180mm | |
Convey or Belt Size of Checkweigher | Length | 250mm/300mm | 200m/300mm | 400mm | 450mm/600mm | 450mm/600mm | 600mm(L) | _ | |
Width | 150mm | 150mm | 210mm | 250mm | 230mm | 340mm | _ | ||
Rated Power | 0.4KW | 0.4KW | 0.75KW | 0.75KW | 1.3KW | 1.3KW | 0.6KW | 0.6KW | |
Controlling System | High speed A/D Sampling Controller | ||||||||
Preset Product Name | 99 | ||||||||
Working Environment | Temperature: 0℃～40℃, Humidity: 30%～95% | ||||||||
Material of Machine | SUS304 | ||||||||
Power Supply | AC220V±10% 50HZ (60HZ) | ||||||||
Rejection | Swing arm | ||||||||
Operating Direction | Facing machines, from left to right | Drop down | |||||||
External Gas Direction | 0.6～1Mpa | _ | |||||||
Interface for Air Pressure | Ф10mm | _ | |||||||
Note:
1. The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
2. Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
Company Scene
Certification
COSO has been certified by the ISO9001 International Quality Management System. Its products comply with globally recognized standards including CE, FDA, and RoHS, ensuring consistent quality control and on-time delivery throughout manufacturing, production, and final shipment.
Exhibition
Packing and Delivery
FAQ
1. Q: What's your minimum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it's one of our advantages.
3. Q: How long is your delivery time？
A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for packing which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can' t be fixed, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
