CW500 CW600
COSO
Product Description
This machine is engineered for high-performance missing content detection in large, heavy, or voluminous products. It serves as an ideal solution for verifying the completeness of sealed cartons to ensure that no items, including bottles, boxes, individual units, bags, or cans, are omitted or missing from the final package.
Main Functions
1. Report function: built-in report statistics, the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year statistical data (need to be required), at any time hold grip production status.
2. Interface: reserved standard interface, convenient for data management, can connect communication network with PC and other intelligent devices.
3. Achieve centralized control: can achieve centralized control of a computer/ man-machine interface operates may check weight.
4. Parameter recovery function：possessing the factory parameter setting recovery function.
Application (included but not limited to)
e.g.

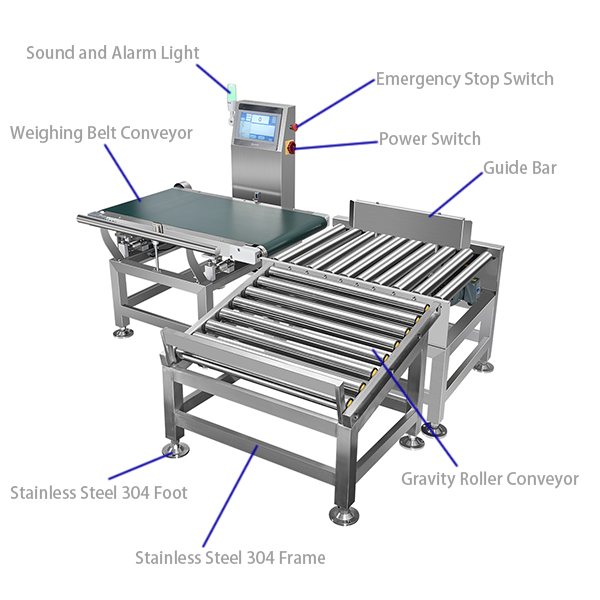

Product Details
Product Features
1. Versatility: Standardized machine structure and standardized man-machine interface can complete the weighing of various materials.
2. Easy to replace: can store a variety of formulations, convenient for the replacement of products specifications.
3. Simple to operation: the use of Weilen color man-machine interface, the whole intelligent, user-friendly design.
4. Easy to maintain: the conveyor belt is easy to disassemble, easy to install, maintain and clean.
5. Adjustable speed: adopt variable frequency control motor, speed can be adjusted according to needs.
6. High-speed, high-precision: adopt the high-precision digital sensors.
7. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.
8. Can combine with metal detector, X ray machine, code machine, automatic scanner, automatic sealing machine.
Product Specification
| Model | CW-500 | CW-600 | |
| Single Weighing Scop | ≤40kg | ≤40kg | |
| Accuracy | ±5g～±20g | ±5g～±20g | |
| Minimum Scale | 1g | 1g | |
| Conveying Speed | 25～50m/min | 25～50m/min | |
| Max Speed | 40 pcs/min | 35 pcs/min | |
| Products to be weighed | Length | ≤650mm | ≤650mm |
| Width | ≤440mm | ≤530mm | |
| Size of Checkweigher Conveyor Belt | Length | 1075mm | 1200mm |
| Width | 490mm | 600mm | |
| Rated Power | 0.4KW | 0.4KW | |
| Power Supply | AC220V±10% 50HZ (60HZ) | ||
| Rejection | Air Blowing/Push Lever/Swing Arm | ||
| Controlling System | High Speed A/D Sample Controller | ||
| Operating Panel | Touch Screen | ||
| Preset Products Name | 99 | ||
| Operating Direction | Facing machine, from Left to Right | ||
| External Gas Source | 0.6-1Mpa | ||
| Interface of Air Pressure | φ8mm | ||
| Working Environment | Temperature: 0℃ ～40℃, Humidity: 30%～95% | ||
| Material of Machine | SUS304 | ||
Note:
1. The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
2. Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
Company Scene
Certification
Exhibition
Packing and Delivery
FAQ
1. Q: What's your minimum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it's one of our advantages.
3. Q: How long is your delivery time？
A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for packing which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can' t be fixed, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
