The Ultimate Guide to Checkweighers: Principles, Types, Selection, and Applications

Is your production line fully protected against underweight rejects and costly giveaway? Struggling to meet regulatory weight compliance at high speeds? How do you choose the right checkweigher among dozens of technical options?

In today's competitive industrial landscape, ensuring the accuracy of products is essential to maintaining quality standards, and customer satisfaction. One of the key tools used to achieve this level of precision is the checkweigher. Checkweighers are integral to various industries, from food production to pharmaceuticals, as they help ensure that products meet required weight specifications. In this ultimate guide, we'll cover the principles behind checkweighers, the different types available, how to select the right one for your needs, and the advantages of using them in production lines.

To compete in the market and stand out with your products.

This guide will help you navigate:

✓  What is checkweigher machine

✓  How checkweighers machine really work

✓  Different types and rejection systems

✓  How to choose the right checkweigher machine for your business

✓   Benefits of Using Checkweighers

What is a Checkweigher?

A checkweigher is an automated system designed to measure the weight of individual items during the production process. It is typically used in high-speed environments to ensure that products adhere to specified weight limits. Unlike traditional manual weighing methods, checkweighers provide accurate and continuous monitoring, allowing manufacturers to maintain consistent product quality.

These machines work by comparing the weight of a product to a preset standard, and if the product is over or under the specified weight, it is typically removed from the production line. This process helps prevent overpacking or underpacking, which can result in regulatory penalties, customer dissatisfaction, and financial loss.

Checkweighers are essential in industries where product weight must adhere to standards, including food, pharmaceuticals, packaging, and manufacturing. They are often integrated into automated production lines for real-time, continuous quality control.

How Do Checkweighers Work? (Principles)

The primary function of a checkweigher is to accurately measure the weight of a product as it moves along a conveyor belt. The principle behind this system involves several key components working in tandem:

• Weighing Scale: The most crucial component of the checkweigher is the scale, typically made up of a load cell. This sensor detects the weight of the object as it passes through the system.

• Load Cell: The load cell transmits the weight measurement to the control system, which compares it against the preset weight limits. Load cells are designed to be highly sensitive and accurate, capable of detecting even 0.1g weight variations.

• Conveyor System: The conveyor system moves the products through the checkweigher, ensuring that items pass over the scale for accurate weighing. Conveyor speed can be adjusted to accommodate various production speeds and product sizes.

• Control System: The control system processes the weight data received from the load cell. It then compares this data to the preset limits and triggers an action, such as rejecting or accepting the product based on its weight.

• Reject System: If the product is deemed out of specifications, the rejection system activates. This may involve flap rejection, pusher rejection, air blow rejection, push lever rejection, or belt sinking that remove the item from the production line.

• Display and Reporting: Most modern checkweighers feature user-friendly displays that provide real-time weight information and other metrics. These systems may also be connected to larger databases for reporting and analysis, helping manufacturers monitor trends and ensure compliance.




Types of Checkweighers

There are different types of checkweighers, each designed for specific needs, environments, and types of products. The choice of checkweigher depends on factors like product features, production speed, and integration with existing production lines. Let's explore the different types.

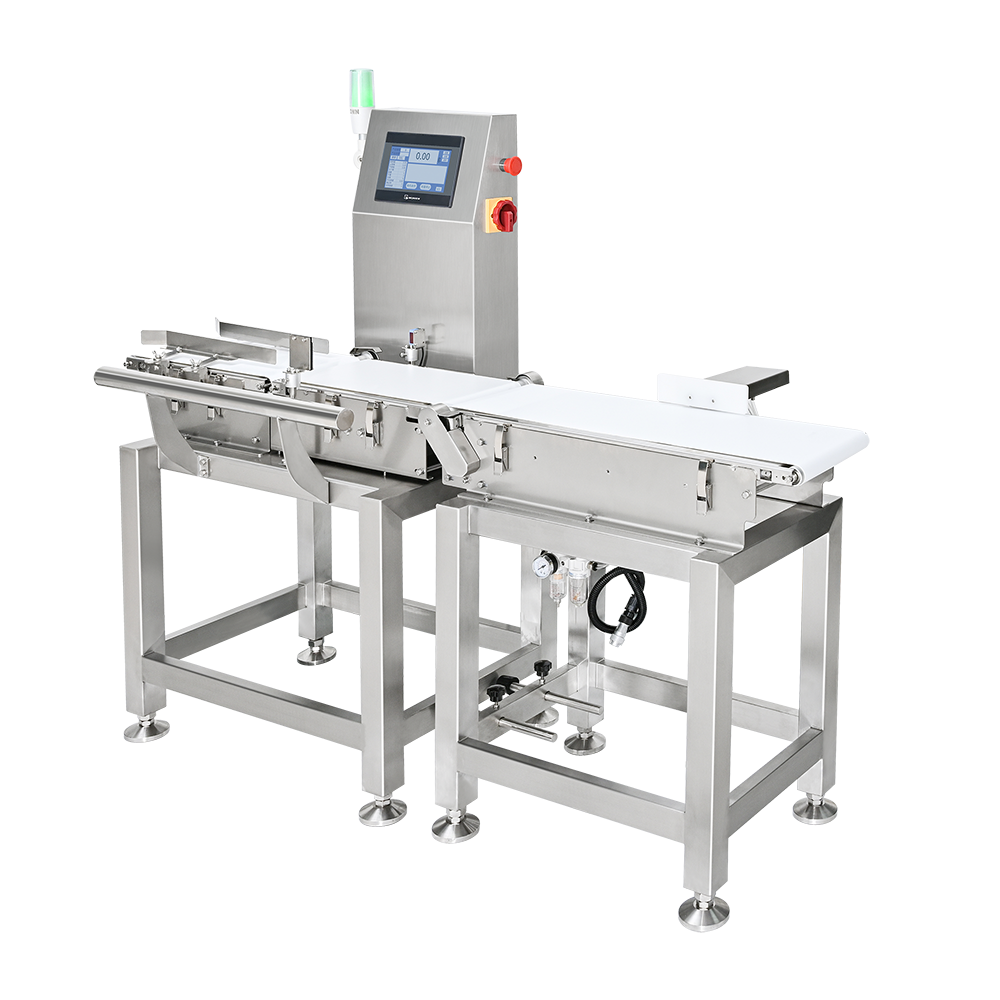

Weight Checking Machine for Large or Heavy Products

Key Features:

• Ideal for bottles, boxes, individual unit, cans for missing items in the package.

• The conveyor belt is easy to disassemble, easy to install, maintain and clean.

• Can combine with metal detector, X ray machine, code machine, automatic scanner, automatic sealing machine.

Weight Checking Machine for Small Size Products

Key Features:

• Ideal for small-sized or light products like small boxes and bags.

• For small-sized porducts, a push lever rejection mechanism is used.

Weight Checking Machine with Pusher Rejection

Key Features:

• Ideal for products with certain thickness and spacing.

• It adopts the pusher rejection mechanism.

Checkweigher with Wind Shield

Key Features:

• Ideal for small-packaged, soft flaky products or production lines with high speed.

• Wind Shield can isolate airflow, effectively preventing fluctuations results caused by air currents, air conditioning, or the movement of people.




How to Select the Right Checkweigher for Your Business

Selecting the right checkweigher for your production line requires considering several factors that affect the accuracy, efficiency, and compatibility of the device.

1. Accuracy and Precision

The accuracy of a checkweigher is crucial, especially for industries that deal with regulated products. Depending on your product’s weight range and the tolerance levels required, you’ll need to choose a checkweigher with the appropriate precision.

2. Speed and Throughput

Consider how fast your production line operates. Faster checkweighers can process more items per minute, but they should not sacrifice accuracy for speed. Choose a system that balances both.

3. Product Characteristics

The size, shape, and packaging of your product will affect the type of checkweigher you need. For example, bulk products like powders and liquids might require a different configuration compared to solid, packaged items.

4. Environmental Factors

Environmental conditions, such as temperature, humidity, and exposure to dust or chemicals, can impact the performance of your checkweigher. For harsh environments, you may need a device made from stainless steel or other resistant materials.

5. Regulatory Compliance

Ensure that the checkweigher you select meets the industry standards and regulatory requirements specific to your region or sector. For example, products in the food and pharmaceutical industries are often subject to strict regulations regarding weight accuracy and labeling.

Benefits of Using Checkweighers

Checkweighers offer numerous advantages, particularly in quality control, production efficiency, and cost savings.

1. Improved Quality Control

By rejecting products that are overweight or underweight, checkweighers ensure that only products that meet the specified weight criteria are sent to packaging or shipment. This helps businesses maintain consistent quality and reduce product waste.

2. Cost Savings

Checkweighers help prevent costly mistakes, such as overpacking or underpacking. By ensuring that products meet weight specifications, manufacturers can avoid penalties and improve profitability by reducing material waste.

3. Enhanced Efficiency

With automation, checkweighers eliminate the need for manual intervention, significantly reducing labor costs and human error. This improves overall production efficiency and throughput.
