| Quantity: | |
|---|---|
PEC2005A
COSO
Product Description

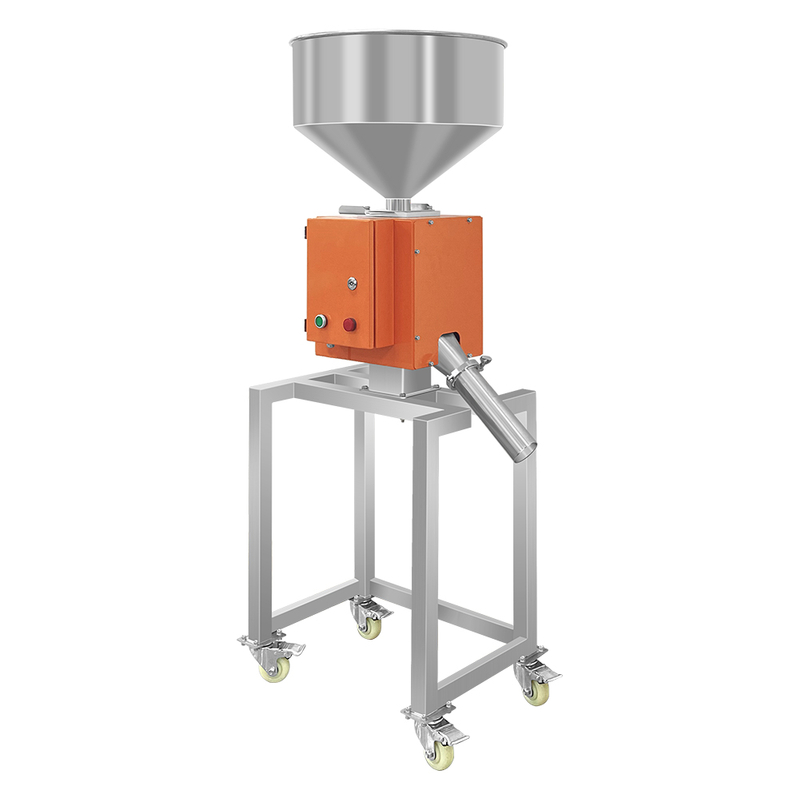

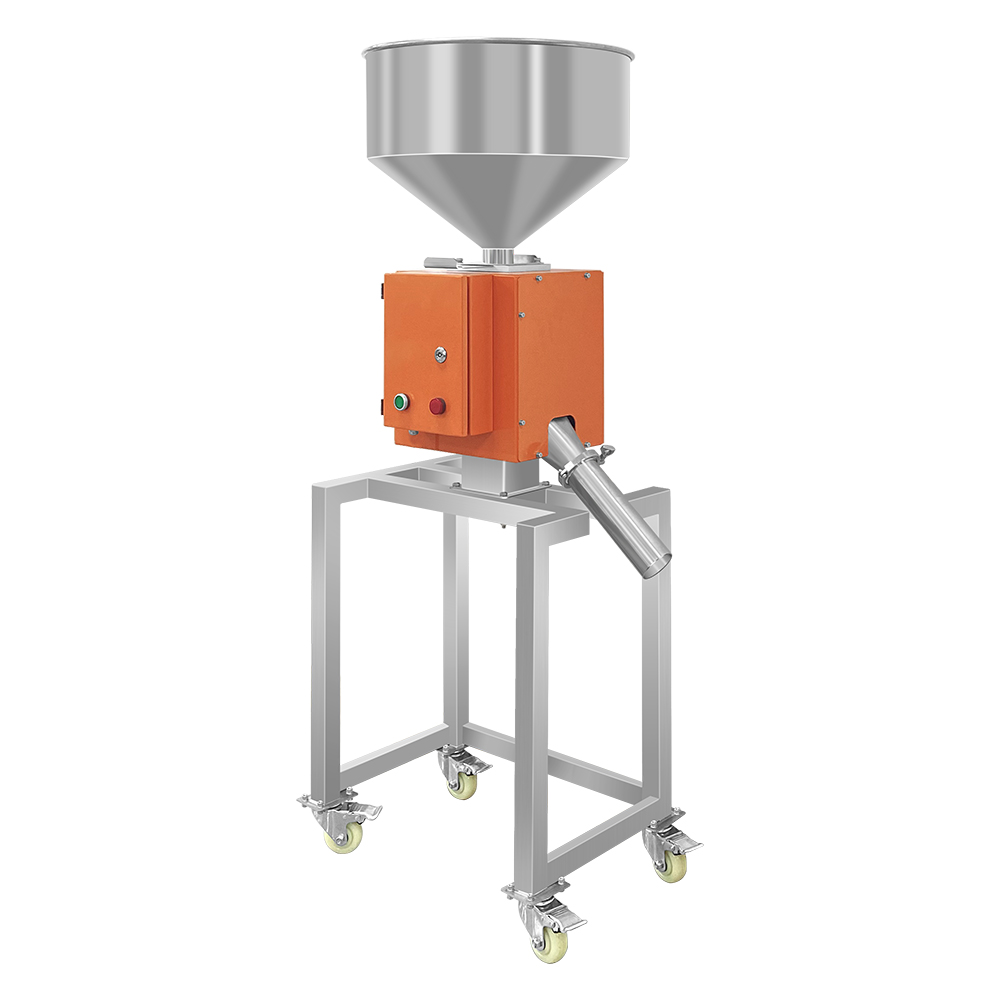

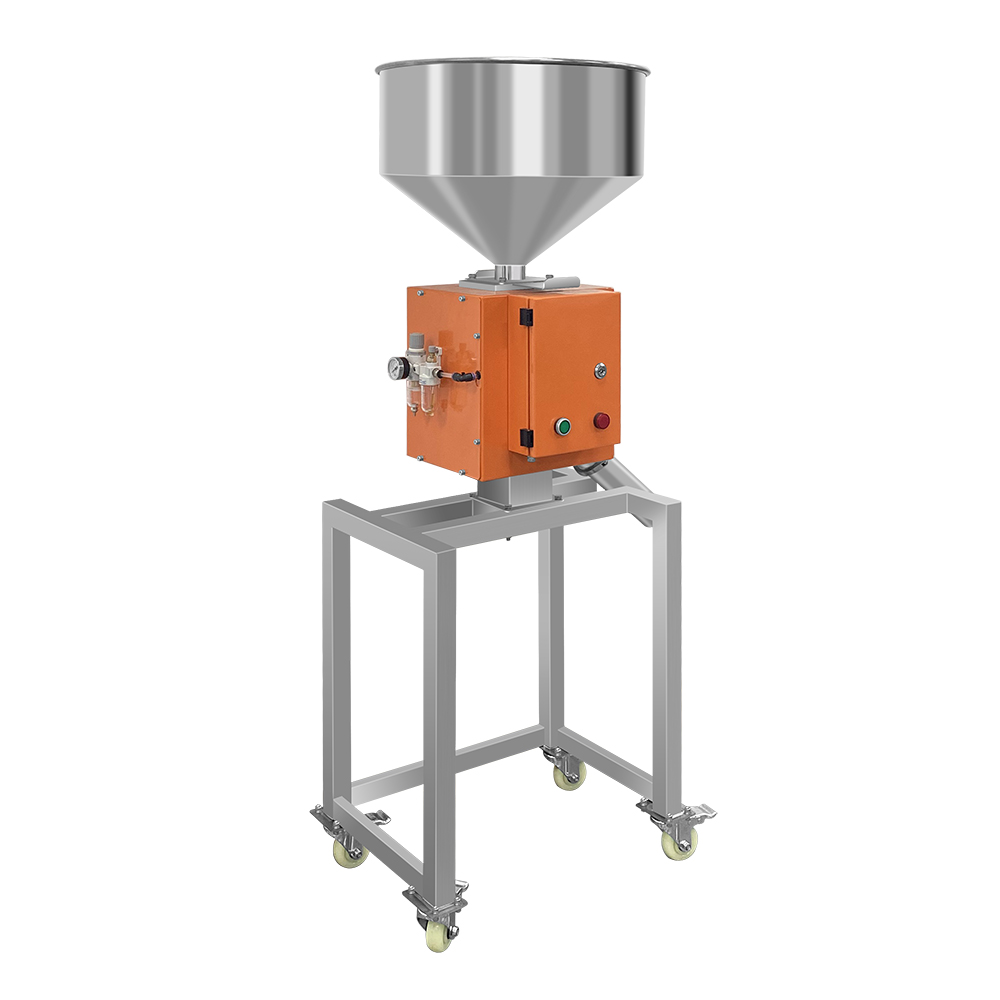

Pipeline metal separator is designed to remove metal contamination from products. It's widely used in plastic, pharmaceutical, food, chemical and other industries. It's able to quickly detect and automatically separate iron, copper, aluminum, stainless steel and other metal impurities from materials.
This machine features a high-performance baking paint surface treatment, a process that offers structural advantages. The surface is not only smooth and even with long-lasting color, but also forms a dense and hard paint film, giving the equipment excellent scratch resistance, chemical corrosion resistance, and ease of cleaning and maintenance. The baking paint technology perfectly balances aesthetic appeal with long-term protection, significantly extending the equipment's service life.
Application (but not limited)
e.g.

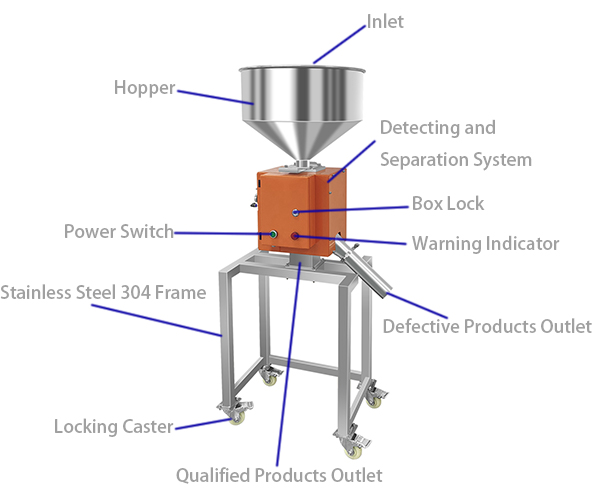

Product Details
Product Features
1. Customer can choose to have only the detection part or additionally the hopper and frame.
2. Different sizes and sensitivities are available.
3. Casters with brakes for easy movement and fixation.
4. LCD screen is convenient for viewing information and adjusting parameters.
5. The whole machine is made of SUS 304.
6. Different machine connection method can be customized, we have flange connection, clamp connection and flexible connection.
(1. If there is no vibration at the inlet and outlet of the equipment where the metal separator connects, flange or clamp connection can be selected. 2. However, if there is vibration at the connection point, a flexible connection should be considered to reduce vibration interference with the machine. )
7. We have a variety of machine types to cover all application scenarios.
Product Specification
| Model | Inner Diameter (Ф mm) | Sensitivity | Air Compression | Max Throughput(L/h) | Material Temperature | Defective Eliminated Time | |
FeФ | SUSФ | ||||||
PEC2005A-30 | 20 | 0.3mm | 0.8mm | 3～5Bar | 300 | <80℃ | 0.3～5s |
PEC2005A-50 | 40 | 0.5mm | 1.0mm | 2000 | |||
PEC2005A-70 | 60 | 0.8mm | 1.2mm | 5000 | |||
PEC2005A-100 | 80 | 1.0mm | 1.5mm | 12000 | |||
PEC2005A-120 | 100 | 1.2mm | 2.0mm | 16000 | |||
PEC2005A-150 | 130 | 2.0mm | 3.0mm | 25000 | |||
PEC2005A-170 | 150 | 2.5mm | 3.5mm | 44000 | |||
Note:
1. The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
2. Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
Company Scene
Certification
COSO has been certified by the ISO9001 International Quality Management System. Its products comply with globally recognized standards including CE, FDA, and RoHS, ensuring consistent quality control and on-time delivery throughout manufacturing, production, and final shipment.
Exhibition
Packing and Delivery
FAQ
1. Q: What's your minimum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it's one of our advantages.
3. Q: How long is your delivery time？
A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for packing which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can' t be fixed, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
