PEC2005B1
COSO
Product Description

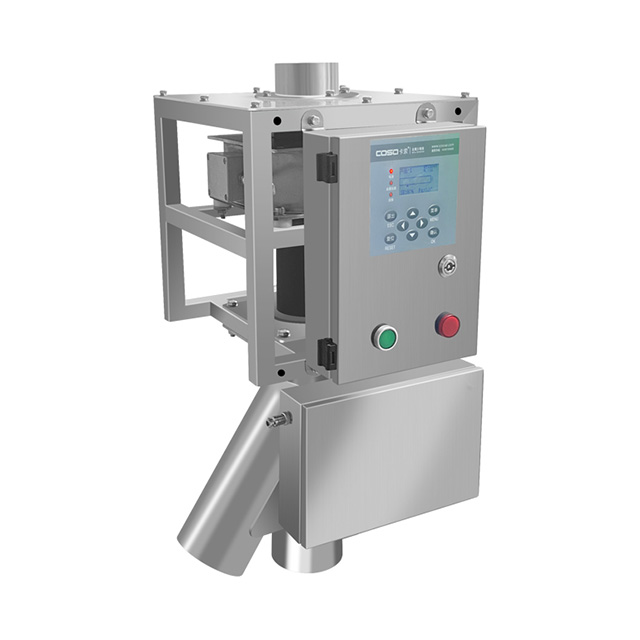

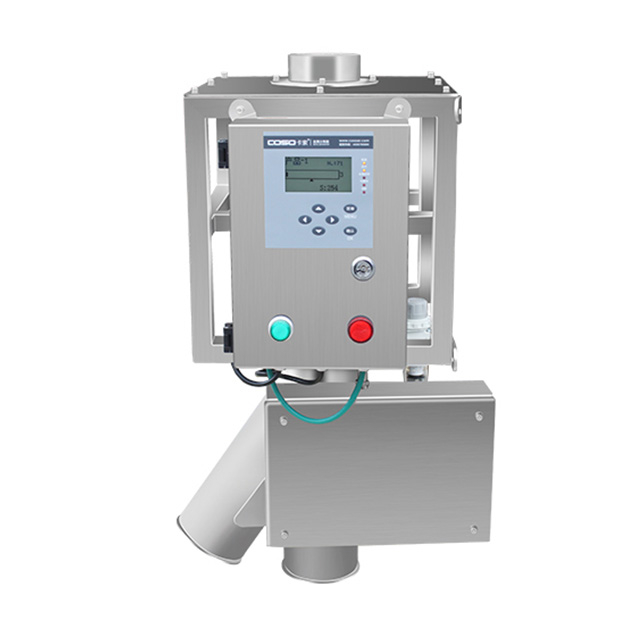

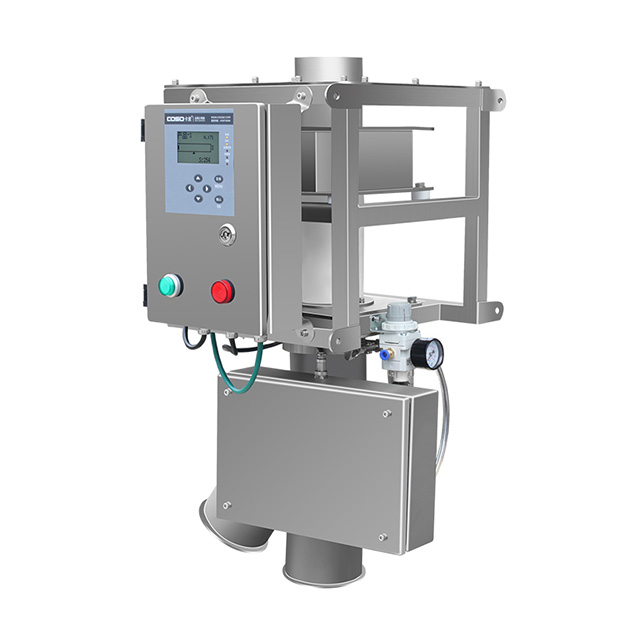

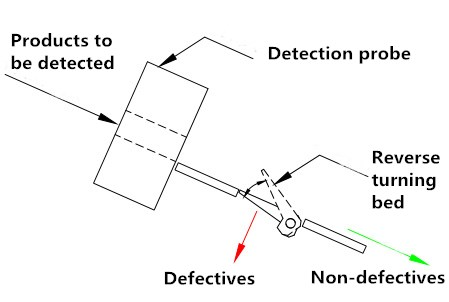

The powder metal separator utilizes advanced digital technology, featuring an intuitive LCD panel for parameter adjustment. It delivers high detection sensitivity and strong anti-interference performance. Its specialized Y-type impurity rejection system efficiently detects and removes metal impurities (e.g., iron, copper, aluminum, and stainless steel) from various powders, such as milk powder, flour, pharmaceutical powder, and plastic pellets.
Application(included but not limited to)

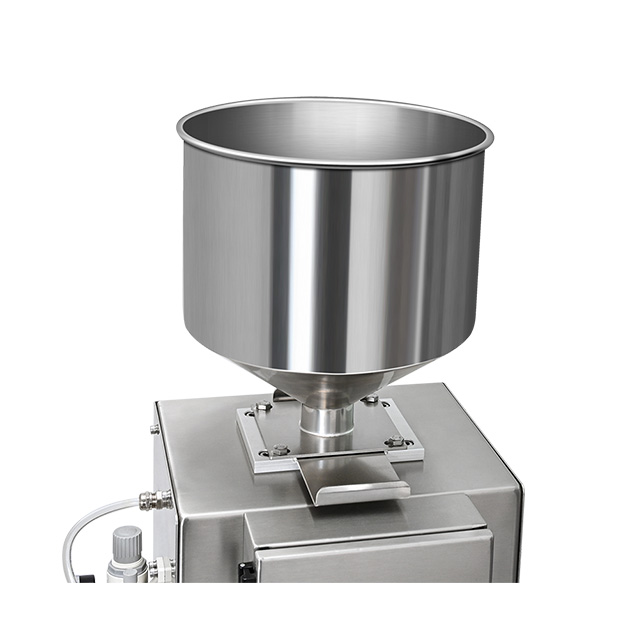

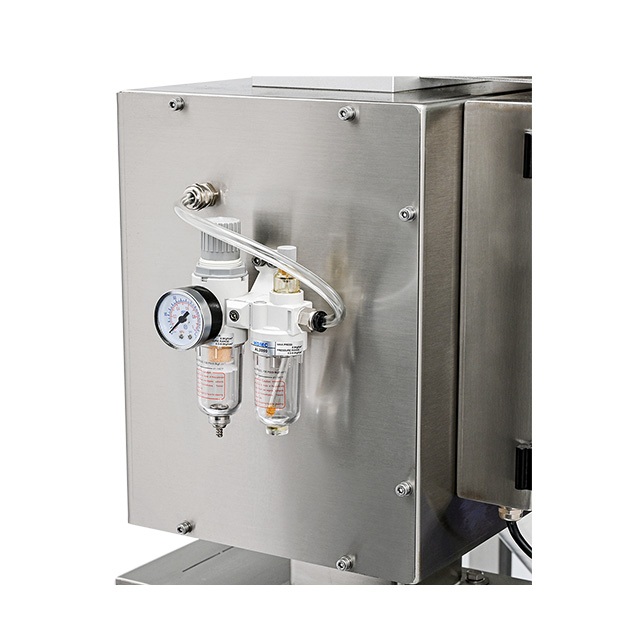

Product Details
Product Feature
1.Multiple pipeline diameters are available to meet different capacity requirements for material.
2.Sensitivity can be adjusted according to product characteristics. Real-time recording of detection and rejection times, and manual clearing of records.
3.Made of stainless steel of 304, it is vibration resistant and adaptable to environment and temperature changes.
4.The rejection system uses a flange connection with a clamp, allowing for quick disassembly and reassembly without the needs for tools, making it easy to clean.
5.Explosion proof customization can be carried out according to the environment and safety needs of the production site to ensure the safe use of equipment.
6.Multiple language choices (Chinese, English, Japanese, etc. Other languages can be customized according to demand).
7.Permission settings, independent administrator password can be set.
8.Passing material characteristics: loose powder, fine granular material, mixed material of particle and powder.
9.Detection temperature of materials: below 80 ℃ and if exceeds this range, special high-temperature material option can be selected.
10. Adaptive power supply 110-240V, 50-60HZ, no need for external transformer.
Product Specification
| Model | Inner Diameter (Фmm) | Sentivity | Air compression | Max.Throughput(L/h) | Mterial Temperature | Defective Eliminated Time | |
| FeФ | SUSФ | ||||||
| PEC2005B1-50 | 40 | 0.3mm | 0.6mm | 3～5Bar | 1000 | <80℃ | 0～59s |
| PEC2005B1-60 | 50 | 0.5mm | 0.8mm | 3～5Bar | 2000 | <80℃ | 0～59s |
| PEC2005B1-70 | 60 | 0.6mm | 1.0mm | 3～5Bar | 3500 | <80℃ | 0～59s |
| PEC2005B1-100 | 80 | 0.8mm | 1.2mm | 3～5Bar | 7500 | <80℃ | 0～59s |
| PEC2005B1-120 | 100 | 1.0mm | 1.5mm | 3～5Bar | 12000 | <80℃ | 0～59s |
| PEC2005B1-150 | 130 | 1.5mm | 1.8mm | 3～5Bar | 20000 | <80℃ | 0～59s |
| PEC2005B1-200 | 180 | 2.0mm | 2.0mm | 3～5Bar | 44000 | <80℃ | 0～59s |
Note:
1. The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
2. Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
Company Scene
Certificaiton
COSO has been certified by the ISO9001 International Quality Management System. Its products comply with globally recognized standards including CE, FDA, and RoHS, ensuring consistent quality control and on-time delivery throughout manufacturing, production, and final shipment.
Exhibition

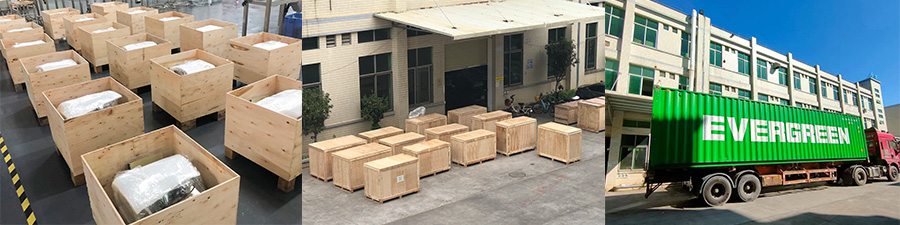

Packing and Delivery
FAQ
1. Q: What's your minimum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it's one of our advantages.
3. Q: How long is your delivery time？
A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for packing which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can' t be fixed, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
