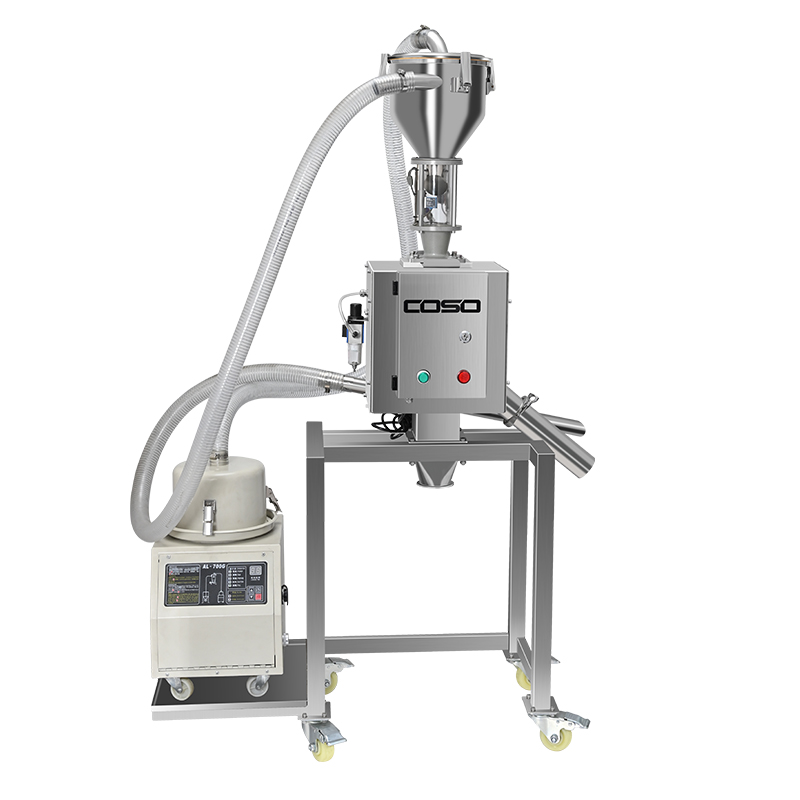

Metal Separator with Automatic Suction Machine

Product Description

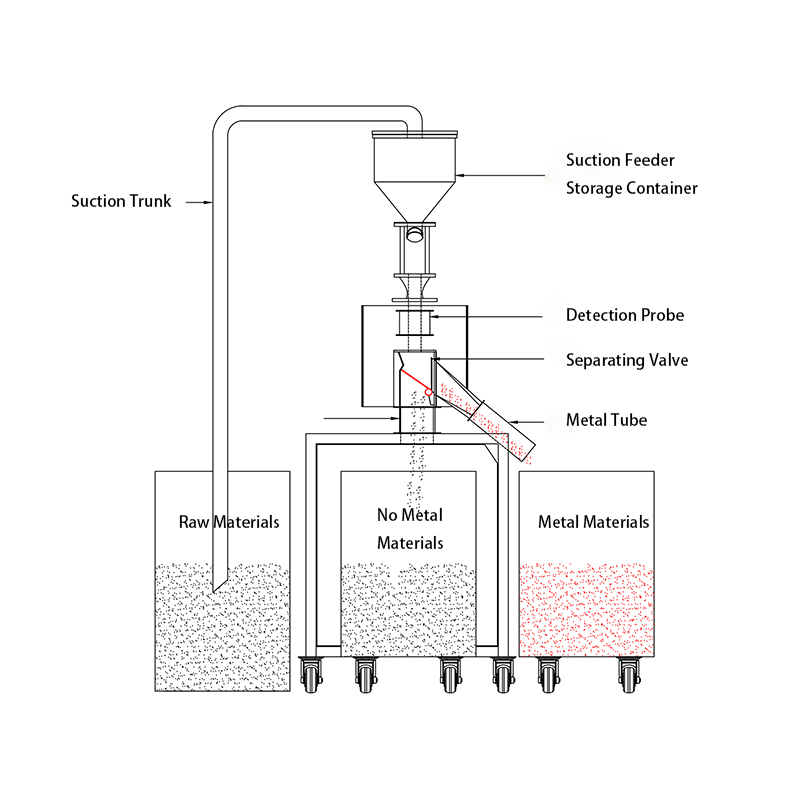

Metal separator (equipped with a suction machine) can automatically detect and separate metal impurities (copper, iron, aluminum, stainless steel, etc.) in plastic raw and recycled materials. Metal separator can effectively prevent the nozzle and hot channel of molds on injection molding machines and extrudes from being blocked by metal impurities, as well as damage to the barrel screw or scratched molds, thereby avoiding downtime caused by machine or mold  maintenance, improving  production efficiency, and preventing product quality problems caused by metal impurities mixed in injection molded parts.

Application(included but not limited to)

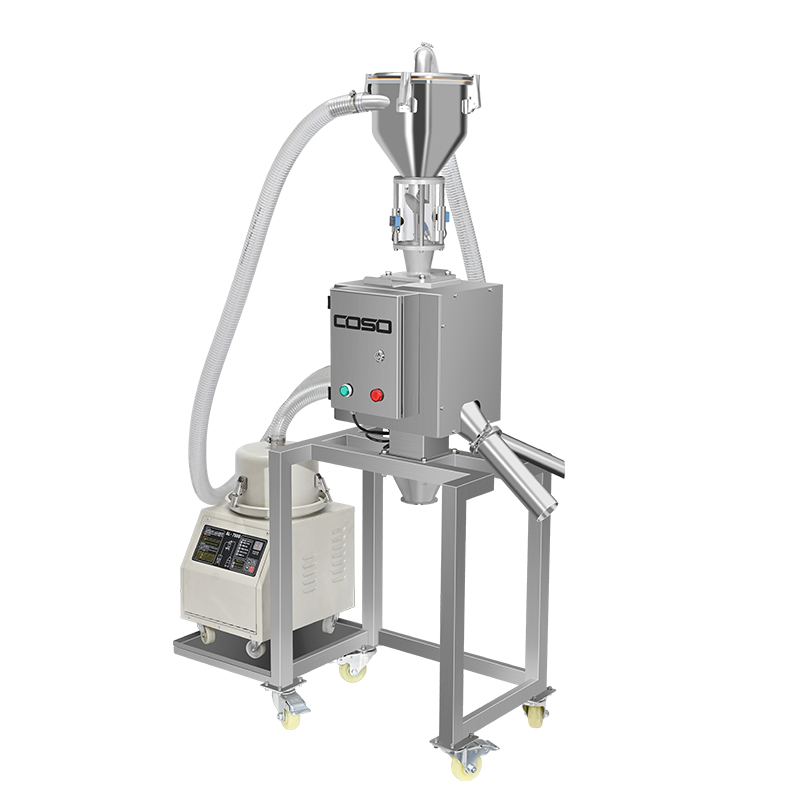

Product Details

Product Feature

1. Metal separator with suction machine can save the labor cost of manual feeding. Different models of suction machines can be chosen according to the customer's requirements on capacity, which can achieve automatic feeding.

2. Machine is light and durable, occupies a small space, is easy to install, operate and move. It can be used independently, or connects with other equipment.

3. Using a rapid rejection system to reject out metal impurities fast, can maximize the availability of materials, not affecting the normal production process.

4. Multiple pipeline diameter are available to meet different capacity requirements for material.

5. Passing material characteristics: loose material, dry, with good fluidity, granular and fragmented materials (granule’s diameter, fragment's length<8mm.)

6. Detection temperature of materials: below 80℃ and if exceeds this range, special high-temperature material option can be selected.

7. Optional installation of magnetic separator.

8. Modular component parts replacement, convenient and fast maintenance.

Product Specification

Note:

 1. The detection sensitivity is the test result obtained by the metal blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.

2. Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.

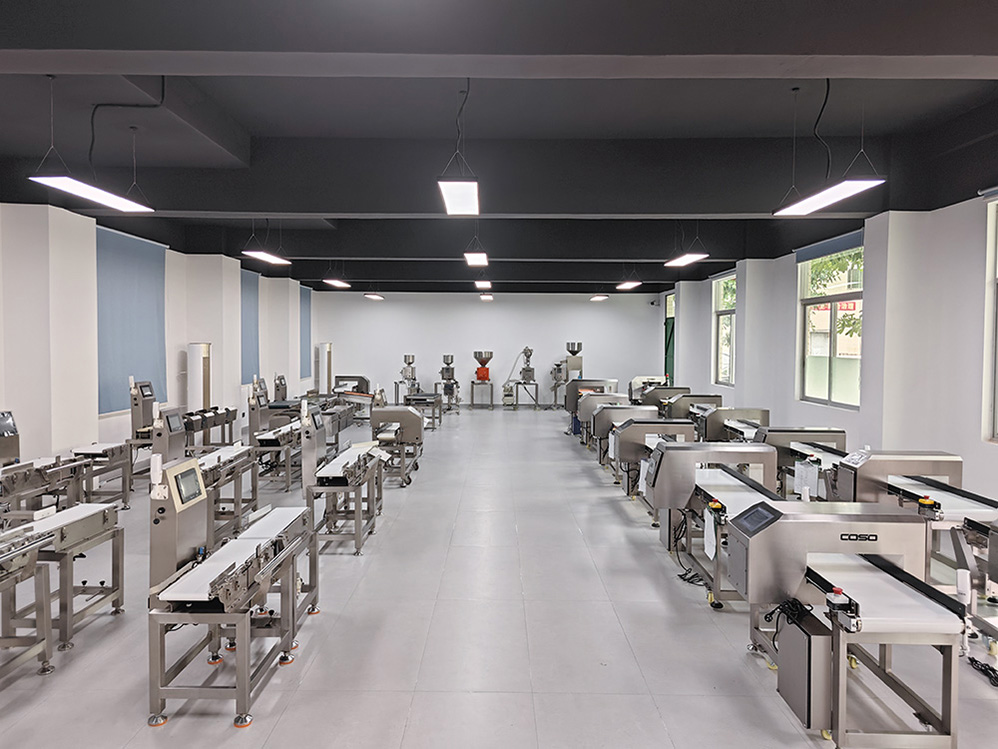

Company Scene

Certification

COSO has been certified by the ISO9001 International Quality Management System. Its products comply with globally recognized standards including CE, FDA, and RoHS, ensuring consistent quality control and on-time delivery throughout manufacturing, production, and final shipment.

Exhibition

Packing and Delivery

FAQ

1. Q: What's your minimum  order quantity?

A: One set.

2. Q: Do you accept customization?

A: Yes, and it's one of our advantages.

3. Q: How long is your delivery time？

A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 days.

4. Q: How about the packing for machine? Would it  be easily damaged during transportation?

A: We use standard export wooden case for packing which is strong enough for transportation.

5. Q: How about your after-sale service?

A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.

Second, if you have continual purchase  needs, you can send people to  our company and we can provide operation training.

Third, all of our products have one year warranty. If the core accessories went wrong and can' t be fixed, you can exchange for a  new one.

Last, if the problem is extremely serious, we can send engineers to your company to help.
