PEC2005E
COSO
Product Description
Liquid metal separator adopts digital intelligent technology to realize the full digitalization and intellectualization of the metal detection so that the performance is excellent, the operation is simple, and the production efficiency is generally improved. It applies to the food industry, chemical industry, pharmaceutical industry, liquid and paste materials, pump pump delivery or fill the application of chili paste, jam, peanut butter, salad dressing, chocolate sauce, yogurt, juice and other liquid substances of metal foreign matter detection.
Application(included but not limited to)

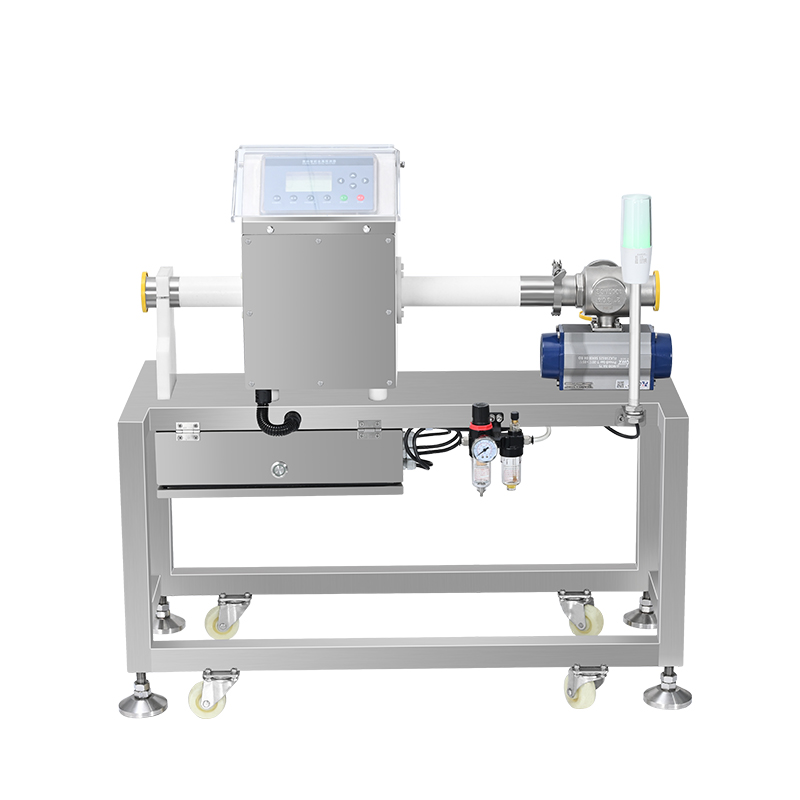

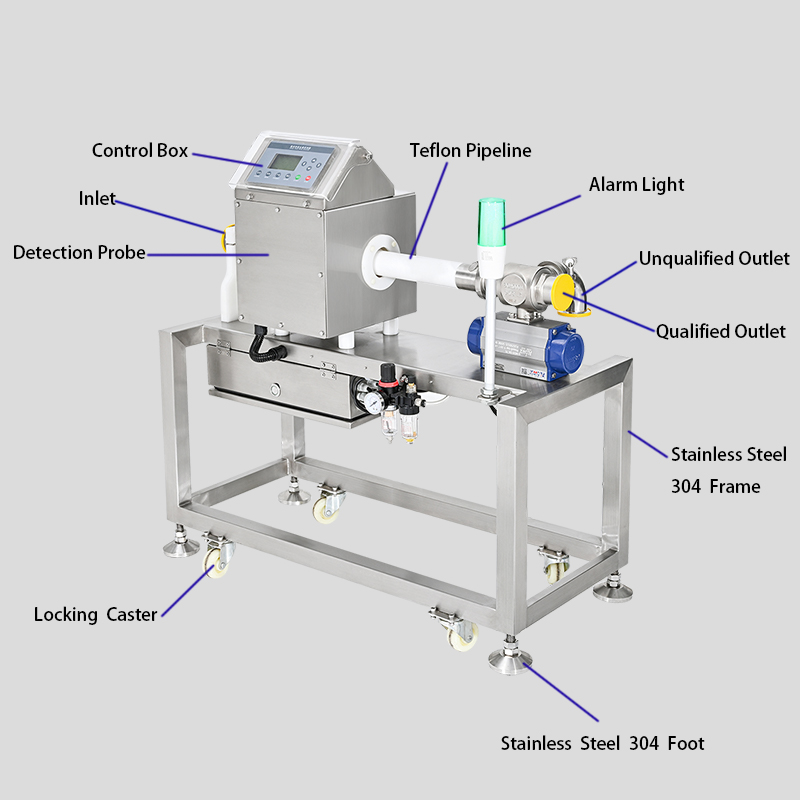

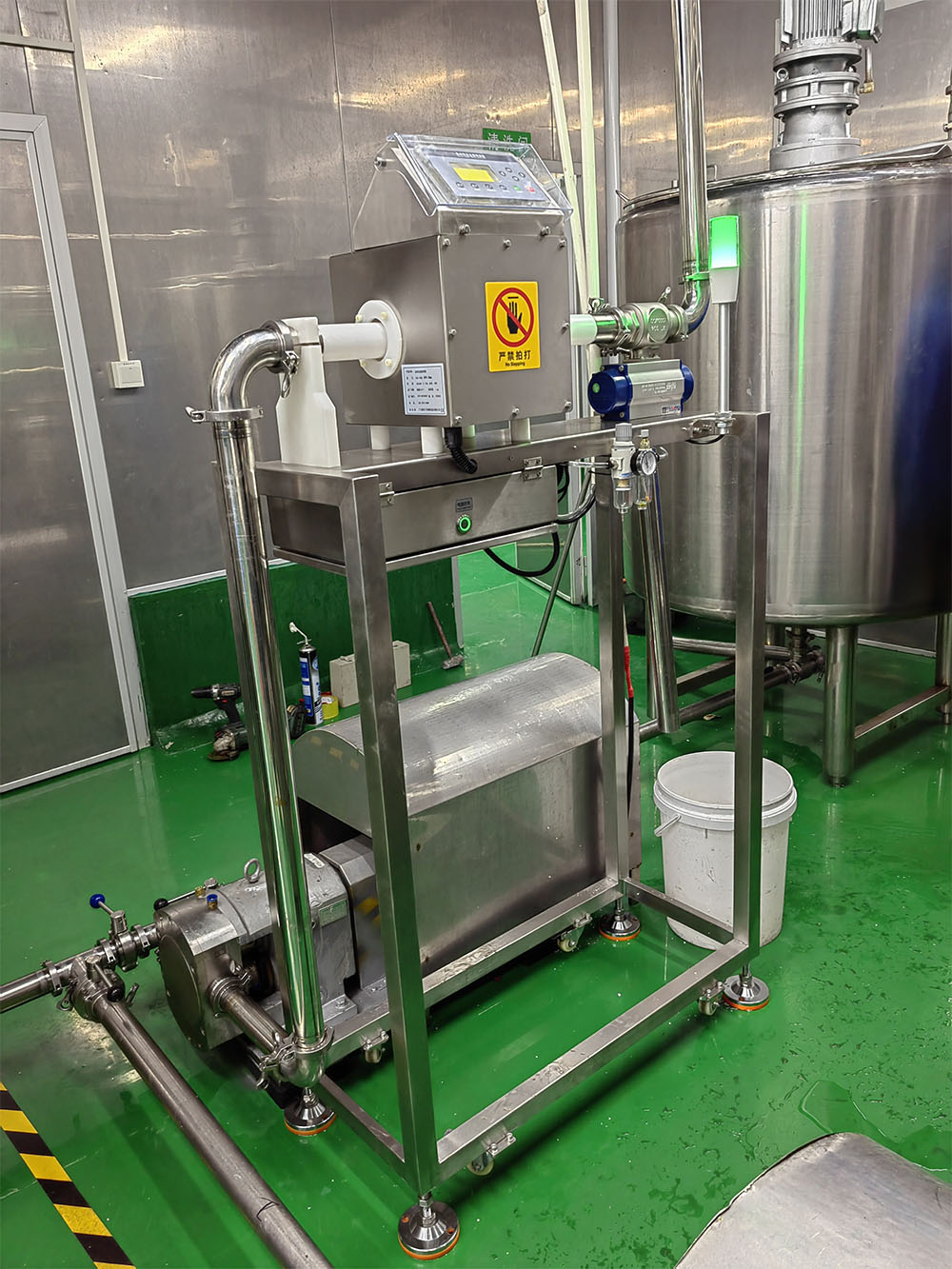

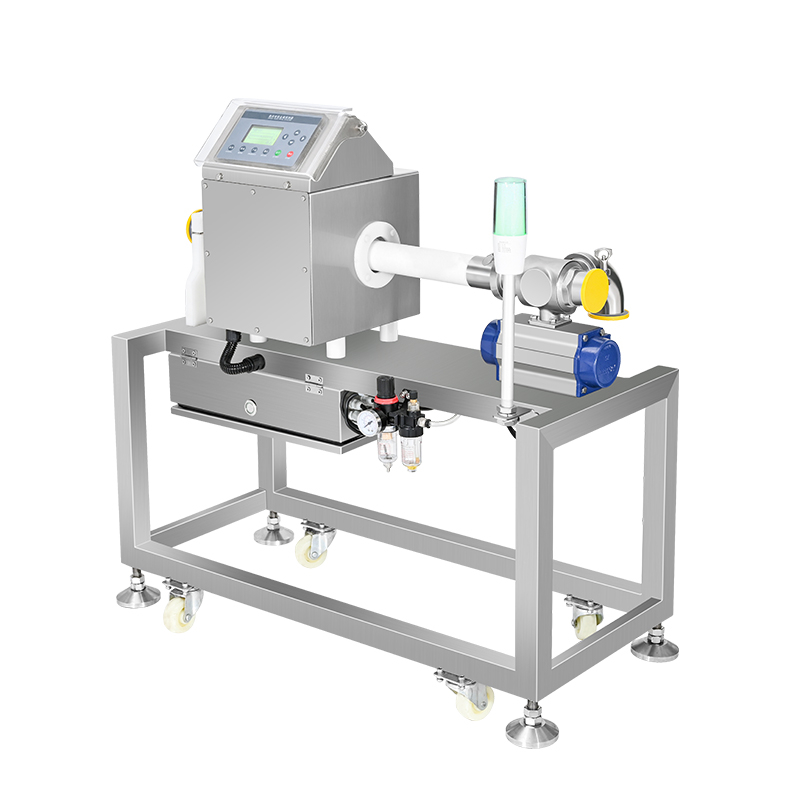

Product Details
Product features
1. The metal separation system can remove magnetic or nonmagnetic metal impurities from the pumped liquid or the paste products (steel, stainless steel, aluminum, etc.);

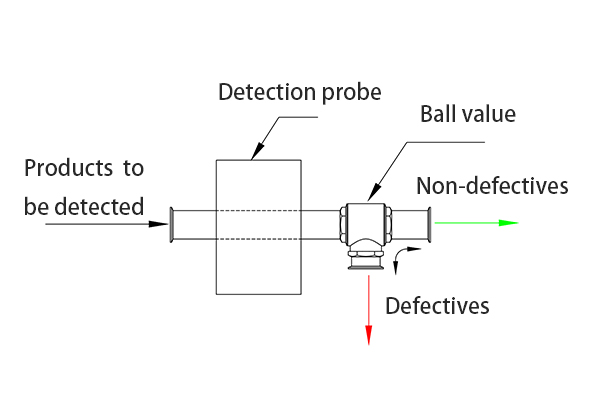

2. After the detection of the metal, the value will be removed from the contaminated material into the waste bin, arc valve removal device designed specially for viscous materials;
3. The metal separator picking join in stainless steel frame, is used to install the desktop or wall. If necessary, it can also be installed to the movable and adjustable bracket;
4. By using a quick connector, it can be conveniently integrated into an existing pipeline system;
5. High strength stainless steel material, it's easy to clean;
6. With self-learning function, up to 100 kinds of product storage function;
7. A variety of caliber can be chosen, the highest sensitivity can detect 0.3mm diameter ball.
Product Specification
| Dimension | Diameter | 50mm | 80mm | 100mm | 120mm | 150mm |
| Sensitivity | Fe | 0.5mm | 0.6mm | 0.8mm | 1.0mm | 1.2mm |
| SUS | 0.8mm | 1.0mm | 1.2mm | 1.5mm | 2.0mm | |
| Power Supply | Single phase AC220V 60VA 50/60HZ | |||||
| Alarm mode | Audible and visual alarm | |||||
| Grade | IP 65 | |||||
Note:
1. The above detection sensitivity is the parameter value in laboratory, the actual detection sensitivity will be different due to the characteristics of the detected products, the operating environment and characteristics (such as magnetic interface, flow velocity, etc.), and should be based on the actual detection sensitivity.
2. Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.

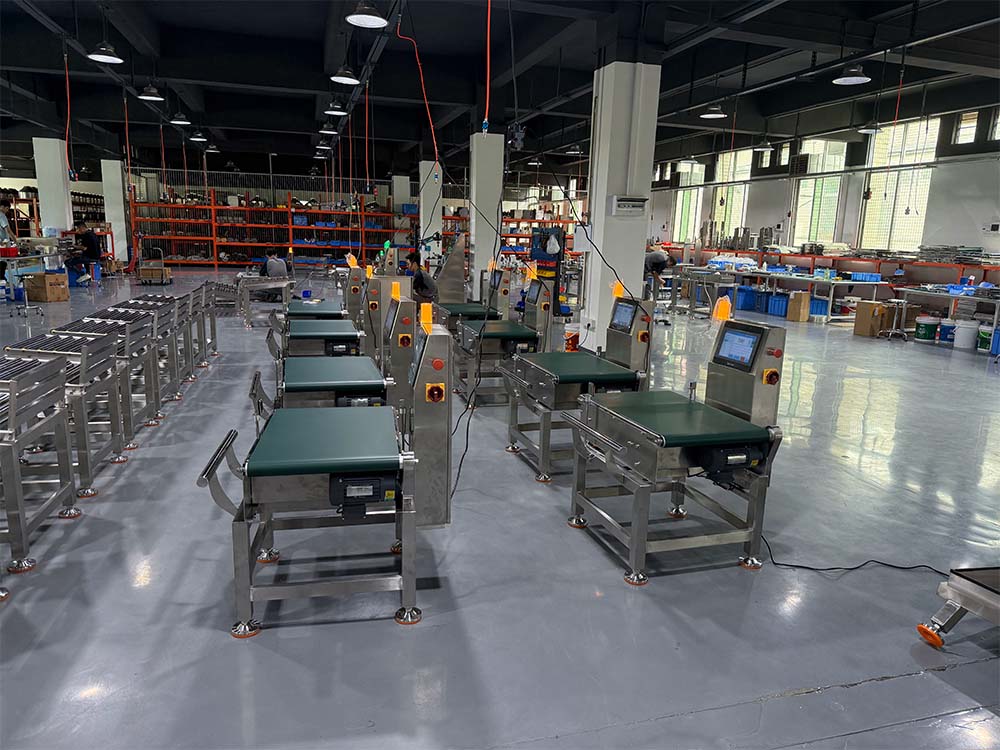

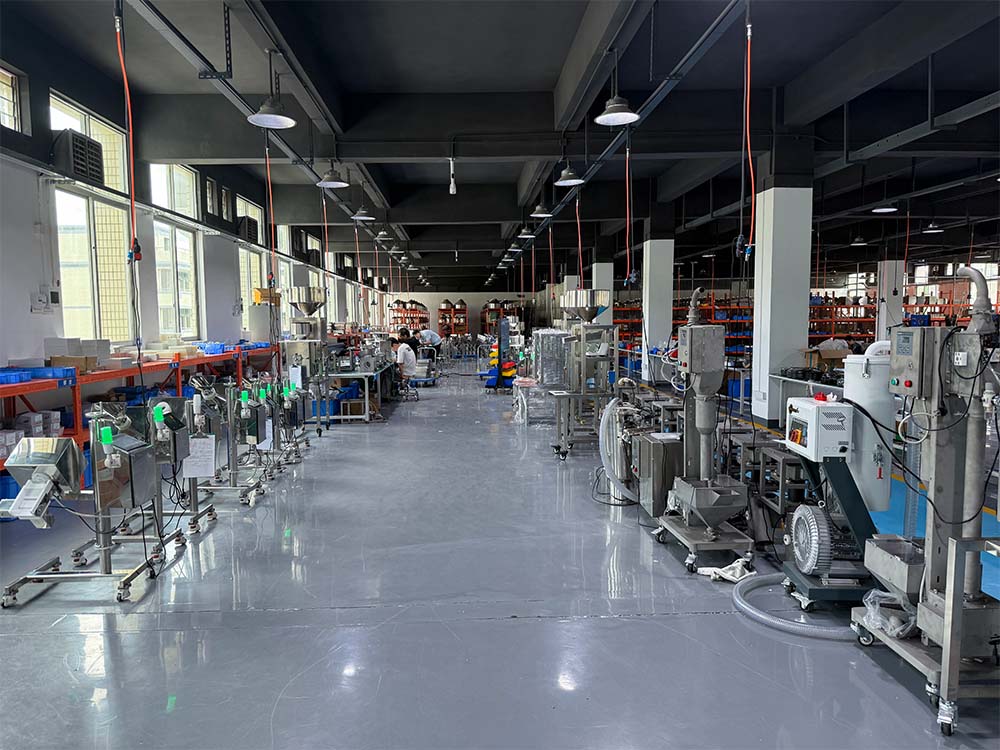

Company Scene
Certification
COSO has been certified by the ISO9001 International Quality Management System. Its products comply with globally recognized standards including CE, FDA, and RoHS, ensuring consistent quality control and on-time delivery throughout manufacturing, production, and final shipment.
Exhibition
Packing and Delivery
FAQ
1. Q: What's your minimum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it's one of our advantages.
3. Q: How long is your delivery time？
A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for packing which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can' t be fixed, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
